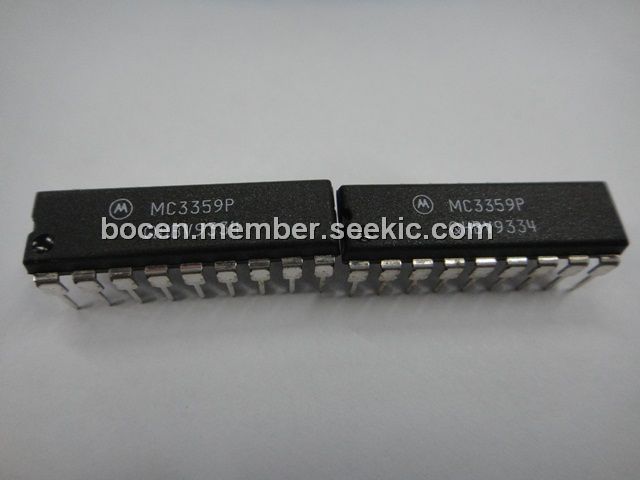

Product Summary

The MC3359P is a low power narrowband FM IF which includes oscillator, mixer, limiting amplifier, AFC, quadrature discriminator, op/amp, squelch, scan control, and mute switch. The MC3359P is designed to detect narrowband FM signals using a 455 kHz ceramic filter for use in FM dual conversion communications equipment.

Parametrics

MC3359P absolute maximum ratings: (1)Power Supply Voltage: 12 Vdc; (2)Operating Supply Voltage Range: 6 to 9 Vdc; (3)Input Voltage (VCC6.0 Volts): 1.0 Vrms; (4)Mute Function: – 0.7 to 12 Vpk; (5)Junction Temperature: 150 ℃; (6)Operating Ambient Temperature Range: – 30 to + 70 ℃; (7)Storage Temperature Range: – 65 to + 150 ℃.

Features

MC3359P features: (1)Low Drain Current: 3.6 mA (Typical) @ VCC = 6.0 Vdc; (2)Excellent Sensitivity: Input Limiting Voltage: 3.0 dB = 2.0 μV (Typical); (3)Low Number of External Parts Required; (4)For Low Voltage and RSSI, use the MC3371.

Diagrams

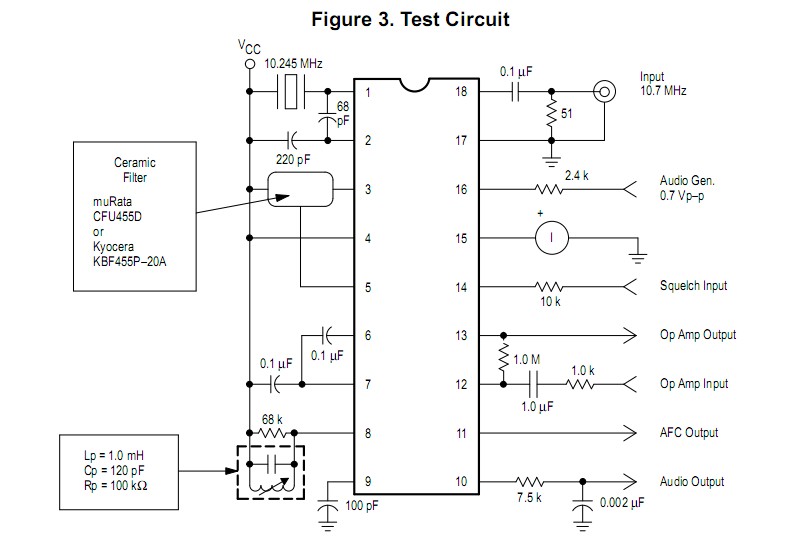

MC3359P test circuit
