Product Summary
The MC34151P is a high speed dual MOSFET driver. The MC34151P is a dual inverting high speed driver specificallydesigned for applications that require low current digital circuitry to drive large capacitive loads with high slew rates. The MC34151P features low input current making them CMOS and LSTTL logic compatible, input hysteresis for fast output switching that is independent of input transition time, and two high current totem pole outputs ideally suited for driving power MOSFETs. Also included is an undervoltage lockout with hysteresis to prevent erratic system operation at low supply voltages.
Parametrics
MC34151P absolute maximum ratings: (1)Power Supply Voltage VCC: 20 V; (2)Logic Inputs Vin: –0.3 to VCC V; (3)Operating Junction Temperature TJ: +150 ℃; (4)Operating Ambient Temperature TA: 0 to +70 ℃; (5)Storage Temperature Range Tstg: –65 to +150 ℃.
Features
MC34151P features: (1)Two Independent Channels with 1.5 A Totem Pole Output; (2)Output Rise and Fall Times of 15 ns with 1000 pF Load; (3)CMOS/LSTTL Compatible Inputs with Hysteresis; (4)Undervoltage Lockout with Hysteresis; (5)Low Standby Current; (6)Efficient High Frequency Operation; (7)Enhanced System Performance with Common Switching Regulator Control ICs; (8)Pin Out Equivalent to DS0026 and MMH0026.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

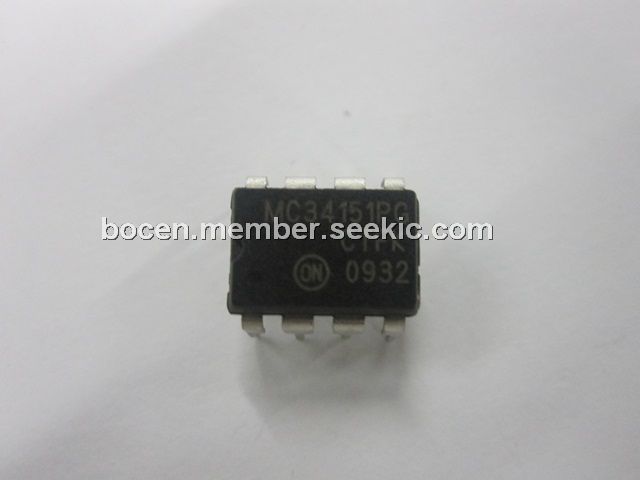

 MC34151P |
ON Semiconductor |
Power Driver ICs 1.5A High Speed Dual |
Data Sheet |
Negotiable |
|
||||||||||||
|
MC34151PG |
ON Semiconductor |
Power Driver ICs 1.5A High Speed Dual Inverting MOSFET |
Data Sheet |
|
|
||||||||||||
