PIC10F200-I/P

Product Summary

The PIC10F200-I/P device from Microchip Technology is a low-cost, high-performance, 8-bit, fullystatic, Flash-based CMOS microcontroller. It employs a RISC architecture with only 33 single-word/ single-cycle instructions. All instructions are single cycle (1 μs) except for program branches, which take two cycles. The PIC10F200-I/P delivers performance in an order of magnitude higher than their competitors in the same price category. The 12-bit wide instructions are highly symmetrical, resulting in a typical 2:1 code compression over other 8-bit microcontrollers in its class. The easy-to-use and easy to remember instruction set reduces development time significantly. The PIC10F200-I/P is equipped with special features that reduce system cost and power requirements. The Power-on Reset (POR) and Device Reset Timer (DRT) eliminate the need for external Reset circuitry. The PIC10F200-I/P is available in cost-effective Flash, which is suitable for production in any volume.

Parametrics

PIC10F200-I/P absolute maximum ratings: (1)Ambient temperature under bias:-40℃ to +125℃; (2)Storage temperature:-65℃ to +150℃; (3)Voltage on VDD with respect to VSS:0 to +6.5V; (4)Voltage on MCLR with respect to VSS:0 to +13.5V; (5)Voltage on all other pins with respect to VSS:-0.3V to (VDD + 0.3V); (6)Total power dissipation:800 mW; (7)Max. current out of VSS pin:80 mA; (8)Max. current into VDD pin:80 mA; (9)Input clamp current, IIK (VI < 0 or VI > VDD):±20 mA; (10)Output clamp current, IOK (VO < 0 or VO > VDD):±20 mA; (11)Max. output current sunk by any I/O pin:25 mA; (12)Max. output current sourced by any I/O pin:25 mA; (13)Max. output current sourced by I/O port:75 mA; (14)Max. output current sunk by I/O port:75 mA.

Features

PIC10F200-I/P features: (1)Only 33 single-word instructions to learn; (2)All single-cycle instructions except for program branches, which are two-cycle; (3)12-bit wide instructions; (4)2-level deep hardware stack; (5)Direct, Indirect and Relative Addressing modes for data and instructions; (6)8-bit wide data path; (7)8 Special Function Hardware registers; (8)In-Circuit Serial Programming (ICSP); (9)In-Circuit Debugging (ICD) support; (10)Power-on Reset (POR); (11)Device Reset Timer (DRT); (12)Watchdog Timer (WDT) with dedicated on-chip RC oscillator for reliable operation; (13)Programmable code protection; (14)Multiplexed MCLR input pin; (15)Internal weak pull-ups on I/O pins; (16)Power-Saving Sleep mode; (17)Wake-up from Sleep on pin change.

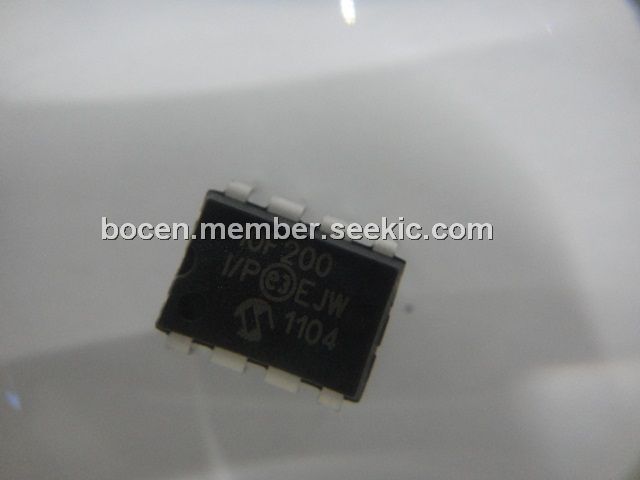

Diagrams
