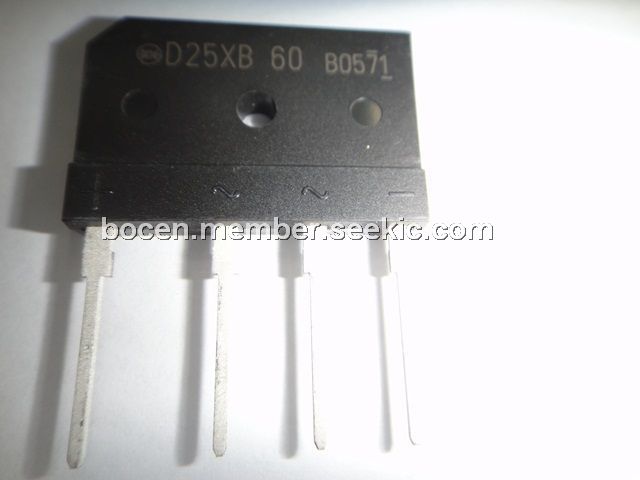

Product Summary

The D25XB60 is a general purpose rectifier.

Parametrics

D25XB60 absolute maximum ratings: (1)Storage Temperature Tstg: -40 to 150℃; (2)Operating Junction Temperature, Tj: 150℃; (3)Maximum Reverse Voltage VRM 600 V; (4)Average Rectified Forward Current IO 50Hz sine wave, R-load With heatsink Tc=98℃ 25 A; (5)50Hz sine wave, R-load Without heatsink Ta=25℃ 3.5; (6)Peak Surge Forward Current IFSM 50Hz sine wave, Non-repetitive 1cycle peak value, Tj=25℃: 350 A; (7)Current Squared Time I2t 1ms≤t<10ms, Tj=25℃: 300 A2s; (8)Dielectric Strength Vdis Terminals to case, AC 1 minute: 2.5 kV; (9)Mounting Torque TOR, Recommended torque : 0.5Nm: 0.8 Nm.

Features

D25XB60 features: (1)Thin Single In-Line Package; (2)High current capacity with Small Package; (3)High IFSM; (4)Superior Thermal Conductivity.

Diagrams

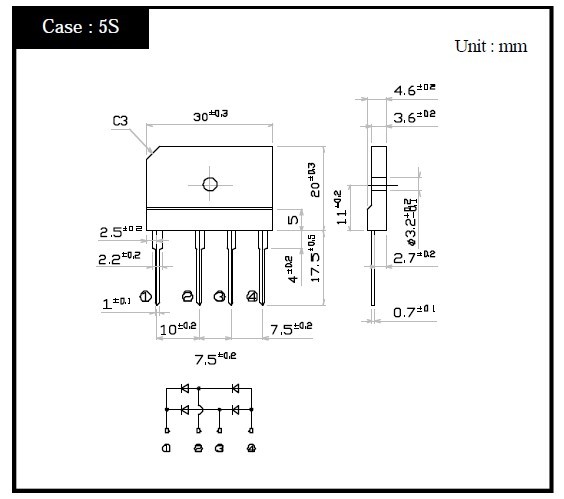

D25XB60 OUTLINE DIMENSIONS
