Product Summary

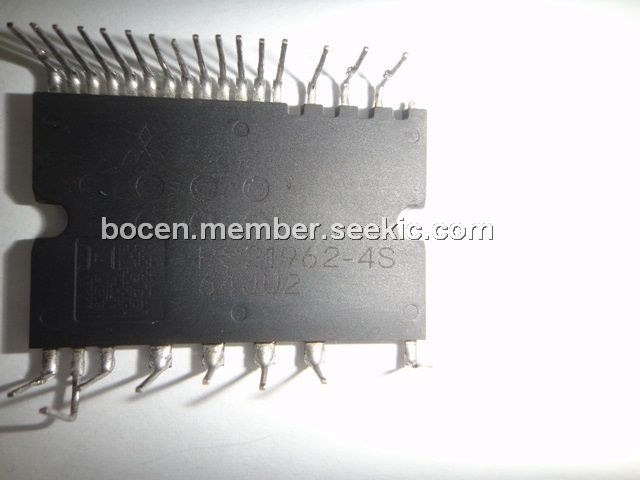

The PS21962-4S is a Dual-In-Line Package Intelligent Power Module. The applications of the PS21962-4S include AC100V~200V inverter drive for small power motor control.
Parametrics
PS21962-4S absolute maximum ratings: (1)Supply voltage: 450 V; (2)Supply voltage (surge): 500 V; (3)Collector-emitter voltage: 600 V; (4)Each IGBT collector current: 5 A; (5)Each IGBT collector current (peak): 10 A; (6)Collector dissipation: 21.3 W; (7)Junction temperature: -20 to +125℃.
Features
PS21962-4S features: (1)For upper-leg IGBTS: Drive circuit, High voltage high-speed level shifting, Control supply under-voltage (UV) protection; (2)For lower-leg IGBTS: Drive circuit, Control supply under-voltage protection (UV), Short circuit protection (SC); (3)Fault signaling: Corresponding to an SC fault (Lower-leg IGBT) or a UV fault (Lower-side supply); (4)Input interface : 3V, 5V line (High Active); (5)UL Approved: Yellow Card No. E80276.
Diagrams
Image | Part No | Mfg | Description | ![]() |
Pricing (USD) |
Quantity | ||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |
![]() PS21962-4S |
![]() |
![]() MOD IPM 600V 5A SUPERMINIDIP |
![]() Data Sheet |
![]()
|
|
||||||
