Product Summary
The TDA1521A is a x 6 W hi-fi audio power amplifier. It is a dual hi-fi audio power amplifier encapsulated in a 9-lead plastic power package. The TDA1521A is especially designed for mains fed applications (e.g. stereo tv sound and stereo radio).
Parametrics
TDA1521A absolute maximum ratings: (1)Supply voltage range VP: ± 7,5 to ± 21,0 V; (2)Output power at THD = 0,5%, VP = ± 12 V Po typ.: 6 W; (3)Voltage gain GV typ.: 30 dB; (4)Gain balance between channels DGV typ.: 0,2 dB; (5)Ripple rejection SVRR typ.: 60 dB; (6)Channel separation a typ.: 70 dB; (7)Noise output voltage Vno(rms) typ.: 70 mV.
Features
TDA1521A features: (1)Requires very few external components; (2)Input muted during power-on and off (no switch-on or switch-off clicks); (3)Low offset voltage between output and ground; (4)Excellent gain balance between channels; (5)Hi-fi according to IEC 268 and DIN 45500; (6)Short-circuit-proof; (7)Thermally protected.

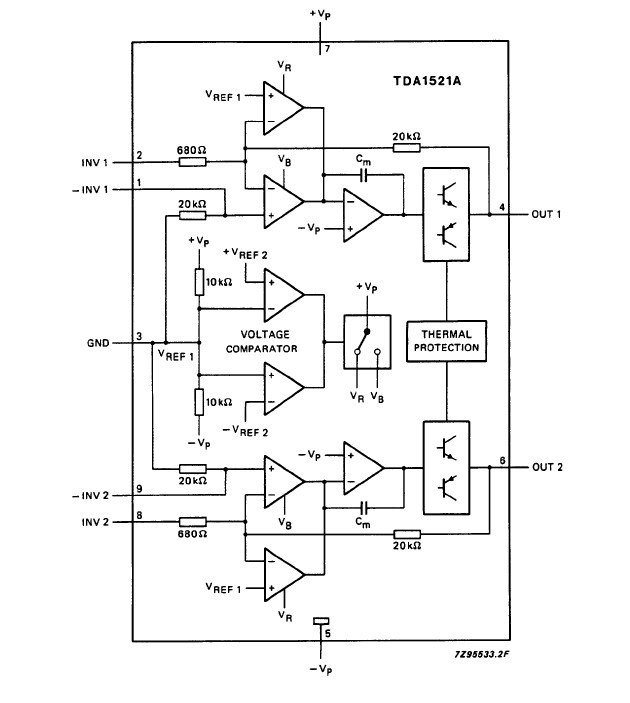

Diagrams
